Deaf Bonce Gemini 770DSP

Deaf Bonce Gemini 770DSP – Car Stereo with Built-in 8-Channel DSP

The Deaf Bonce Gemini 770DSP is a powerful car stereo designed for those who want complete control over their audio system. Featuring an advanced built-in DSP, eight RCA outputs, and a high preamp output voltage of up to 5.5 volts, it serves as the perfect centerpiece for both simple system upgrades and advanced car audio builds.

The integrated digital signal processor allows precise sound tuning with accurate time alignment. Each speaker can be individually adjusted so that sound reaches the driver at exactly the right moment, resulting in improved focus, a more defined stereo image, and a more cohesive listening experience. Time alignment can be adjusted from 0 to 18 ms in fine 0.1 ms increments.

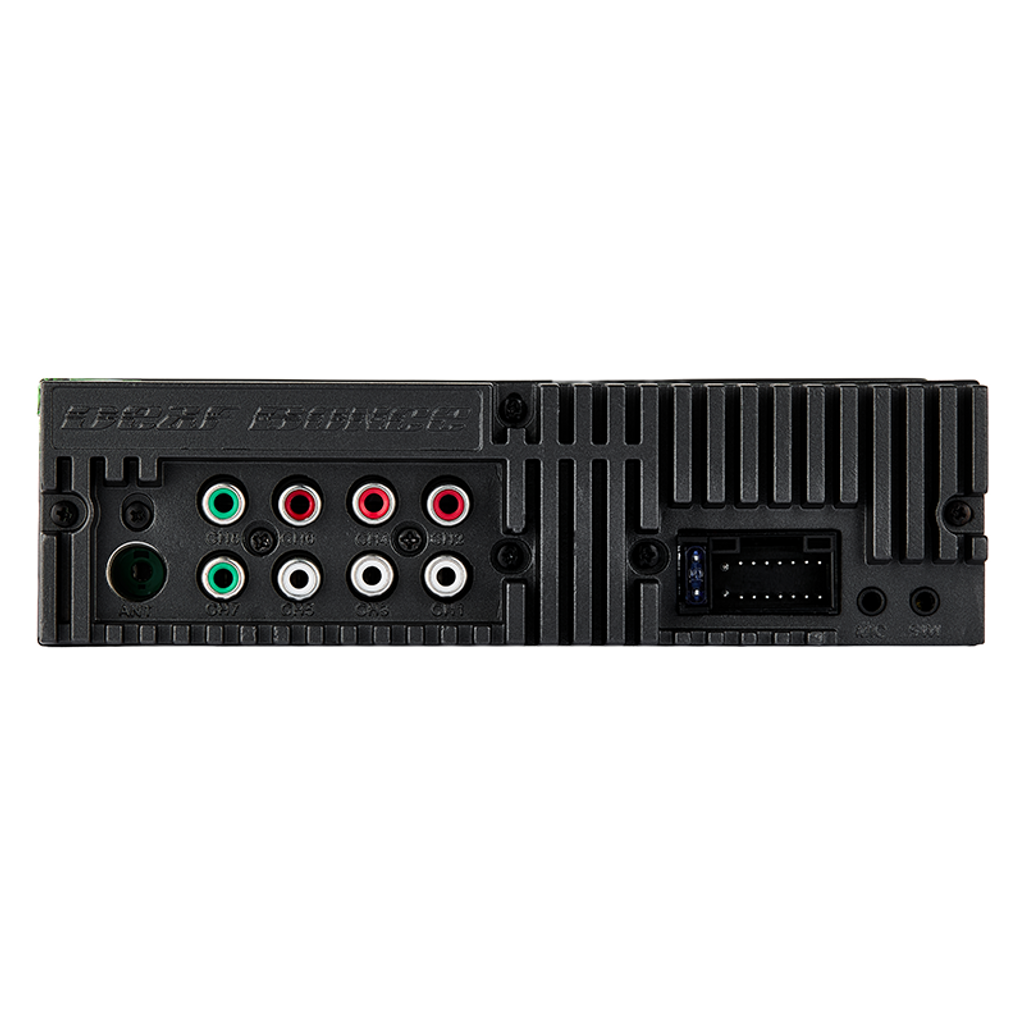

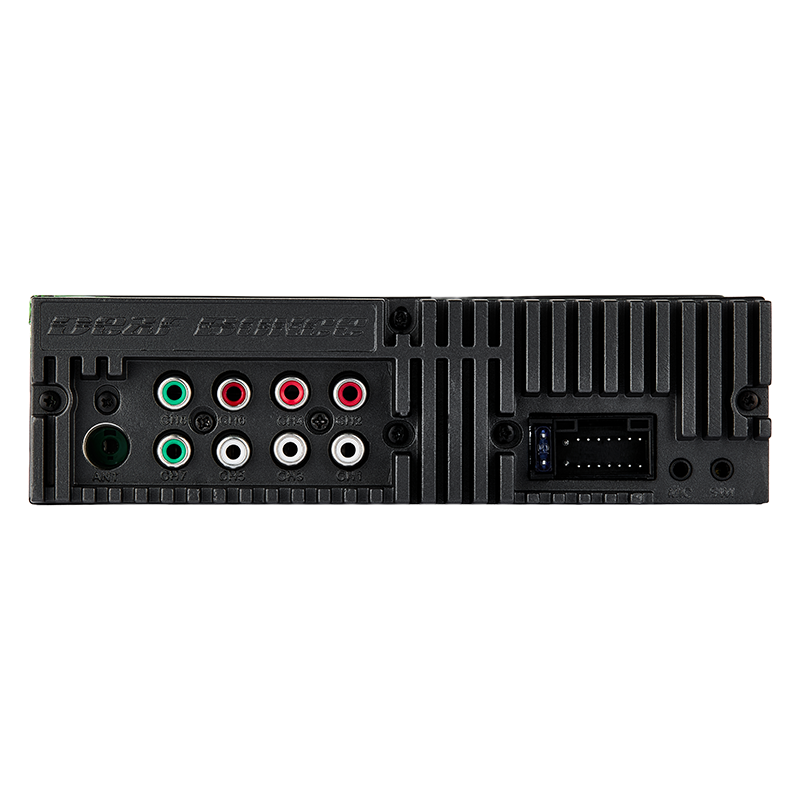

The Gemini 770DSP features a total of eight RCA outputs, consisting of six full-range outputs and two dedicated subwoofer outputs. With a high preamp output voltage of up to 5.5 volts, it delivers a strong, clean signal to external amplifiers, reducing the risk of noise and providing the foundation for exceptional sound quality even at high volume levels.

The built-in amplifier delivers 4 × 25W RMS at 4 ohms. It supports a wide range of popular audio formats, including high-resolution, lossless FLAC and WAV files. The high-speed USB connection makes it easy to enjoy your music while preserving maximum audio quality.

The customizable ARGB front panel lighting offers up to 16.7 million colors, allowing you to match the receiver to your vehicle's interior or existing ambient lighting. Its robust construction and efficient cooling system ensure reliable performance, even during extended high-output operation.

Deaf Bonce Gemini 770DSP combines user-friendly media playback with the advanced tuning capabilities required to build a truly balanced and powerful car audio system.

Specifications

• Built-in DSP digital signal processor

• Power output: 4 × 25W RMS @ 4 ohms

• 8 RCA outputs

• 6 full-range outputs

• 2 subwoofer outputs

• RCA output voltage: up to 5.5V

• Frequency response: 15–20,000 Hz

• Time alignment: 0–18 ms

• Time alignment adjustment resolution: 0.1 ms

• ARGB lighting with 16.7 million colors

• USB connection

• Supports MP3, WMA, AAC, FLAC, and WAV

• Efficient cooling for stable performance
