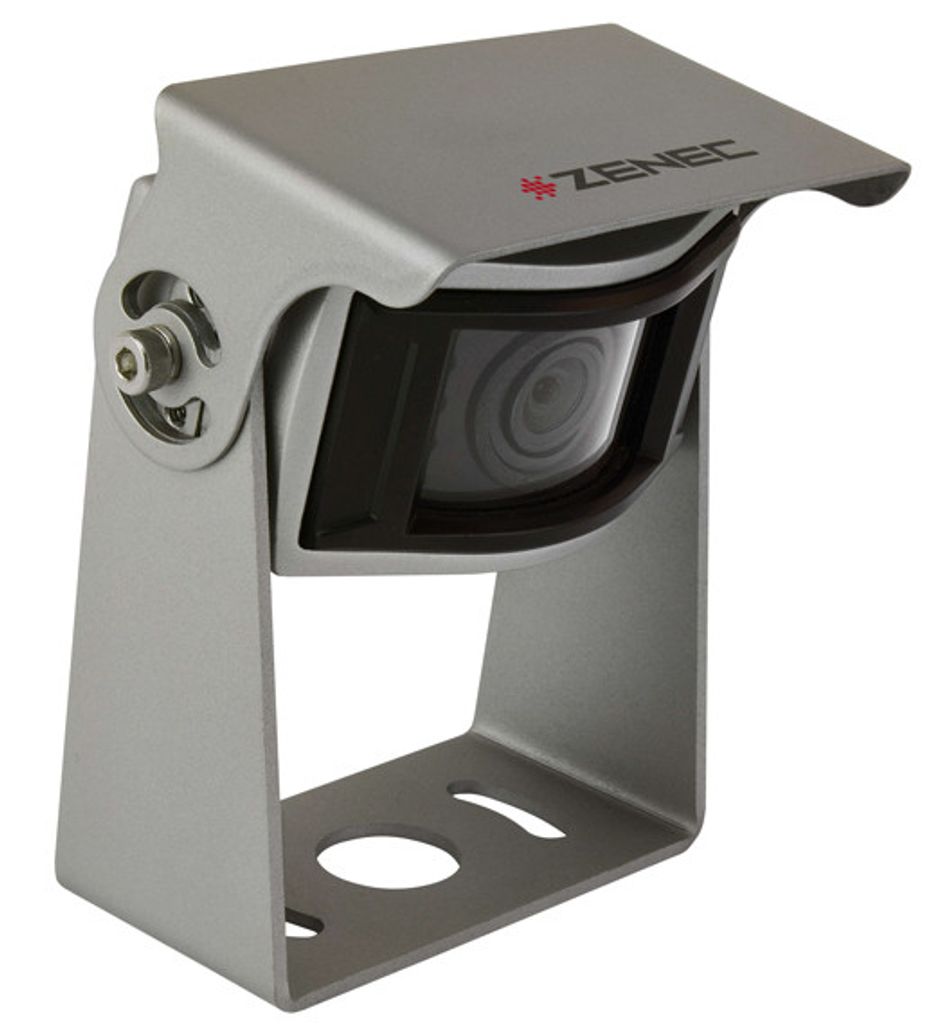

Zenec ZE-RVSC90

Rear view camera especially for the Motor Home area
ZENEC's compact, high-resolution rear view camera is equipped with a very sensitive CCD camera sensor. Due to the large viewing angles - 170ø horizontally and 125ø vertically - this camera always offers a very good overview when maneuvering. Nine strong night vision IR LEDs that illuminate the area behind the vehicle ensure excellent visibility even in the dark. The switch between day and night mode occurs automatically and is controlled via LDR (Light Dependent Resistor).

- Powder-coated housing made of die-cast aluminum
- Camera system: 0.33"/8.5 mm Sony CCD sensor
- Focal length lens: f2.3
- TV system: NTSC / 60 Hz
- Viewing angle: 170ø(D) x 125ø(H) x 100ø(V)
- Native sensor resolution: 811 (H) x 508 (V) pixels
- Output signal resolution: > 600 TV lines
- Signal/noise ratio: > 60 dB
- Light sensitivity: 0.1 Lux (IR on)
- Video output: 1.0 Vp-p, 75 ohms
- White balance: Automatic
- Brightness adjustment: Automatic
- Synchronization: Automatic
- Power supply: DC 12V ñ1V
- Power consumption: 130mA (DC12V) - Protection class: IP69K
- Operating temperature: -20øC~+70øC, RH 95% MAX.
- Dimensions - short bracket (HxWxD): 74 x 85 x 65 mm
- Dimensions - long bracket (HxWxD): 101 x 85 x 65 mm
-Weight: 333g
